One platform, software adapted to your needs.

Alphatek gives you guided measurement, live training feedback, user profiles and follow-up for fitness centres, clinics, sport and teaching in one and the same platform.

Request a demo Explore the screens

Feedback on screen motivates and creates a shared understanding between athlete and professional.

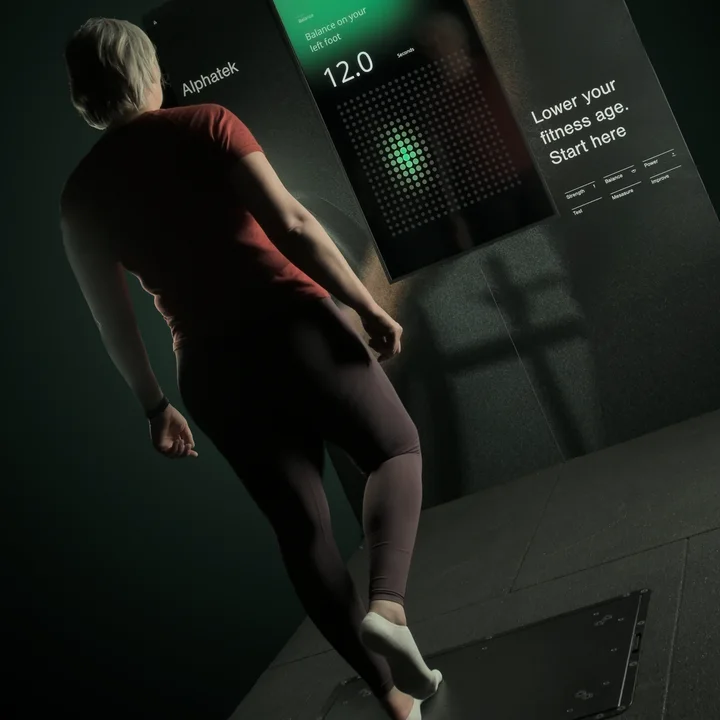

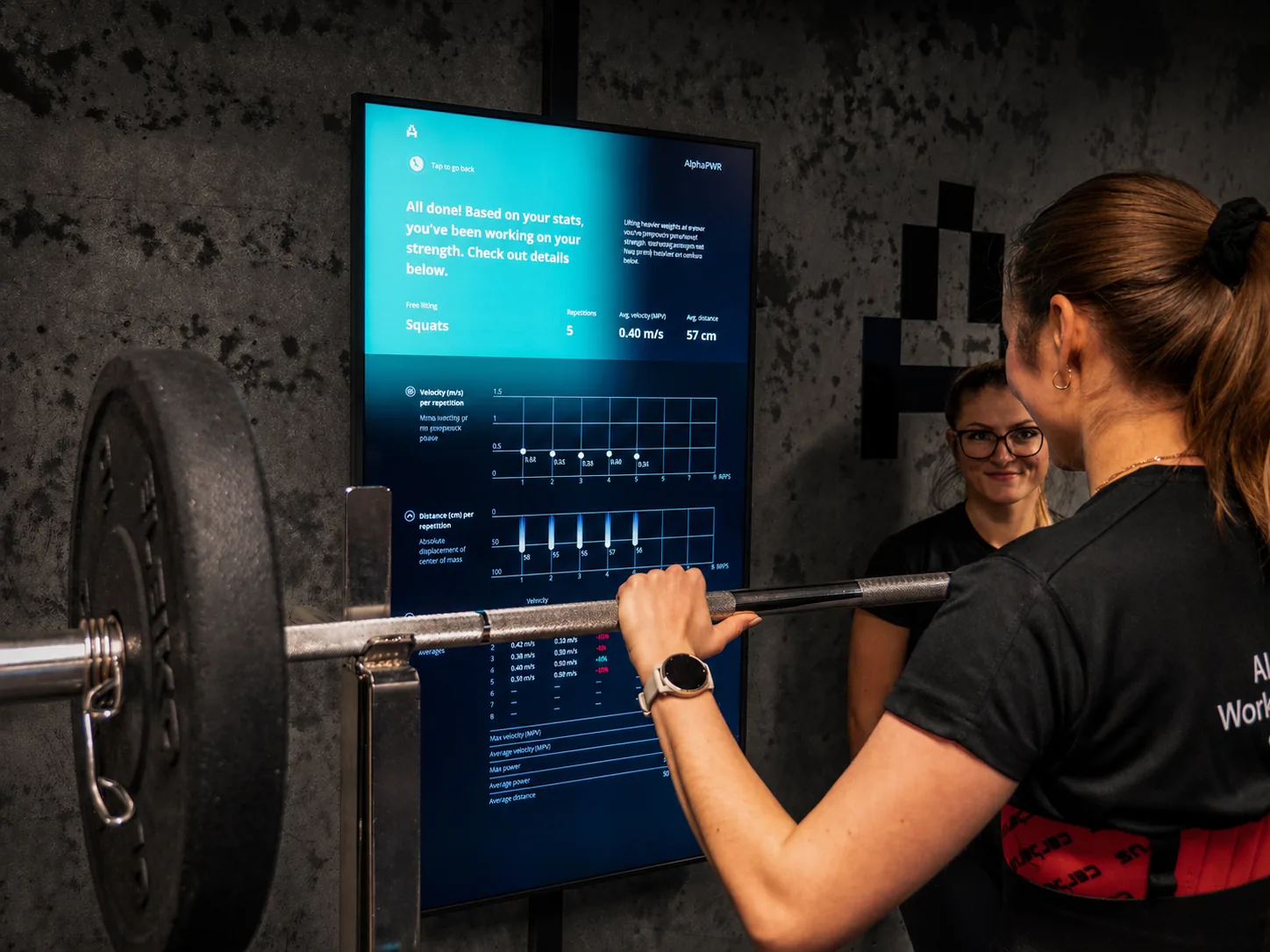

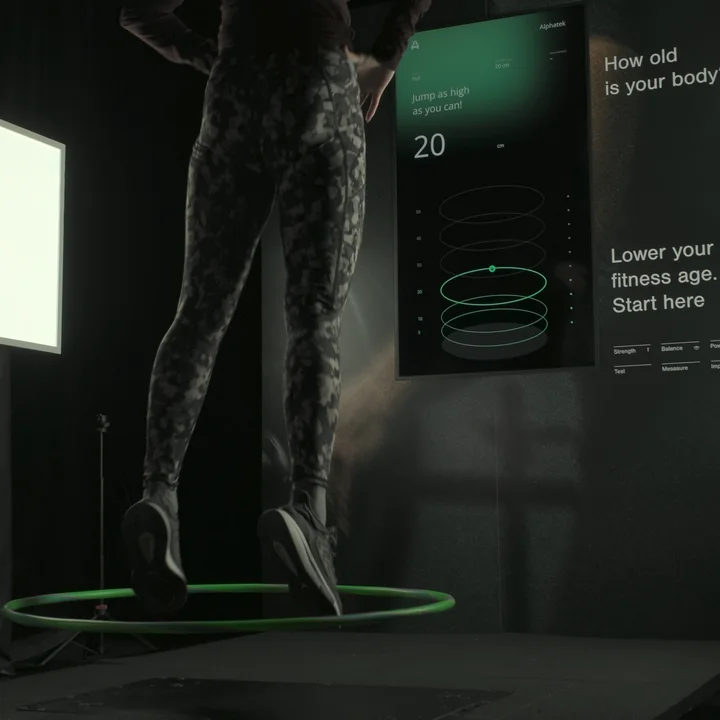

A professional guides a participant while Alphatek shows live feedback.

Several activities, one session.

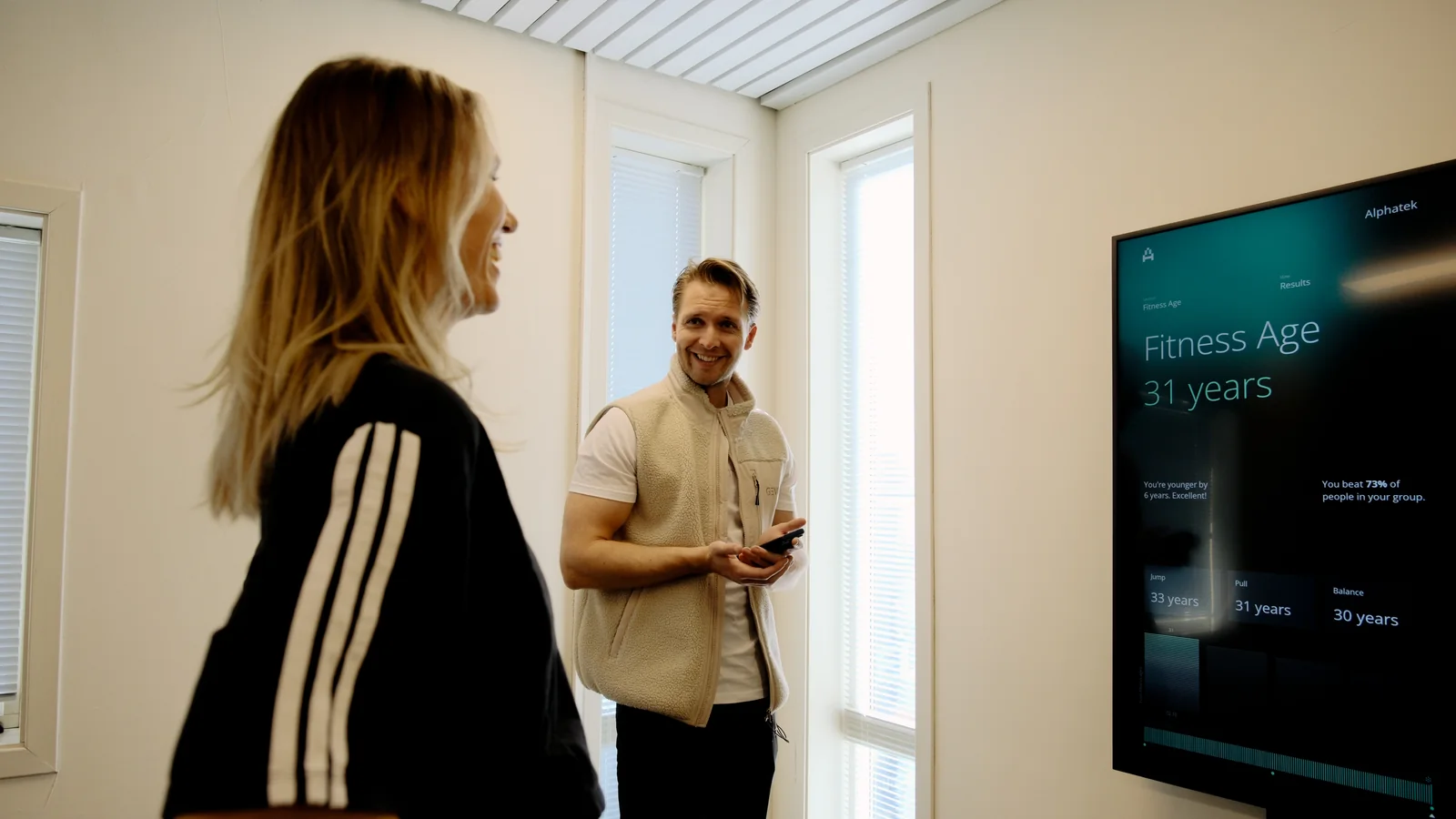

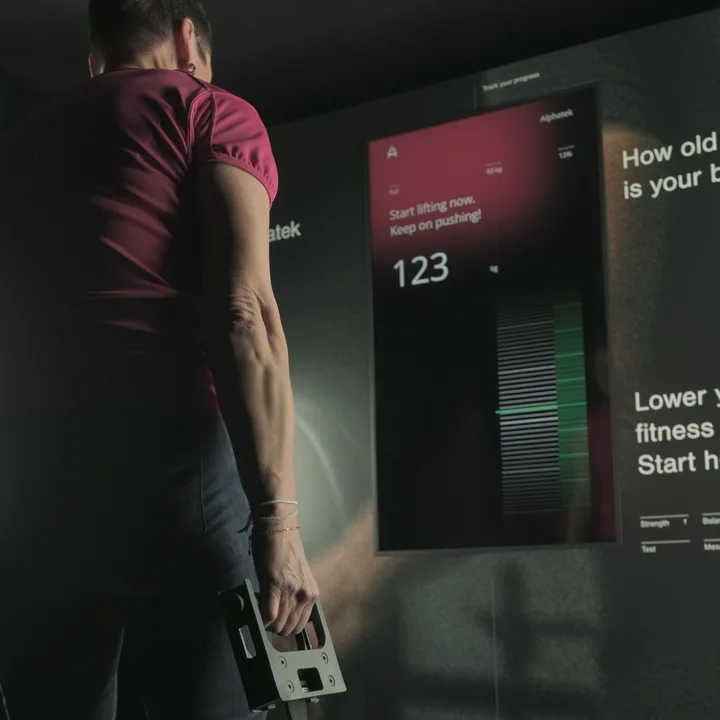

An activity is a single measurement, such as a jump or a pull. A session puts several activities together in a set order, so testing is quick and done the same way every time. Fitness Age is one of them: Pull, Jump and Balance in about five minutes.

Every movement. A new experience.

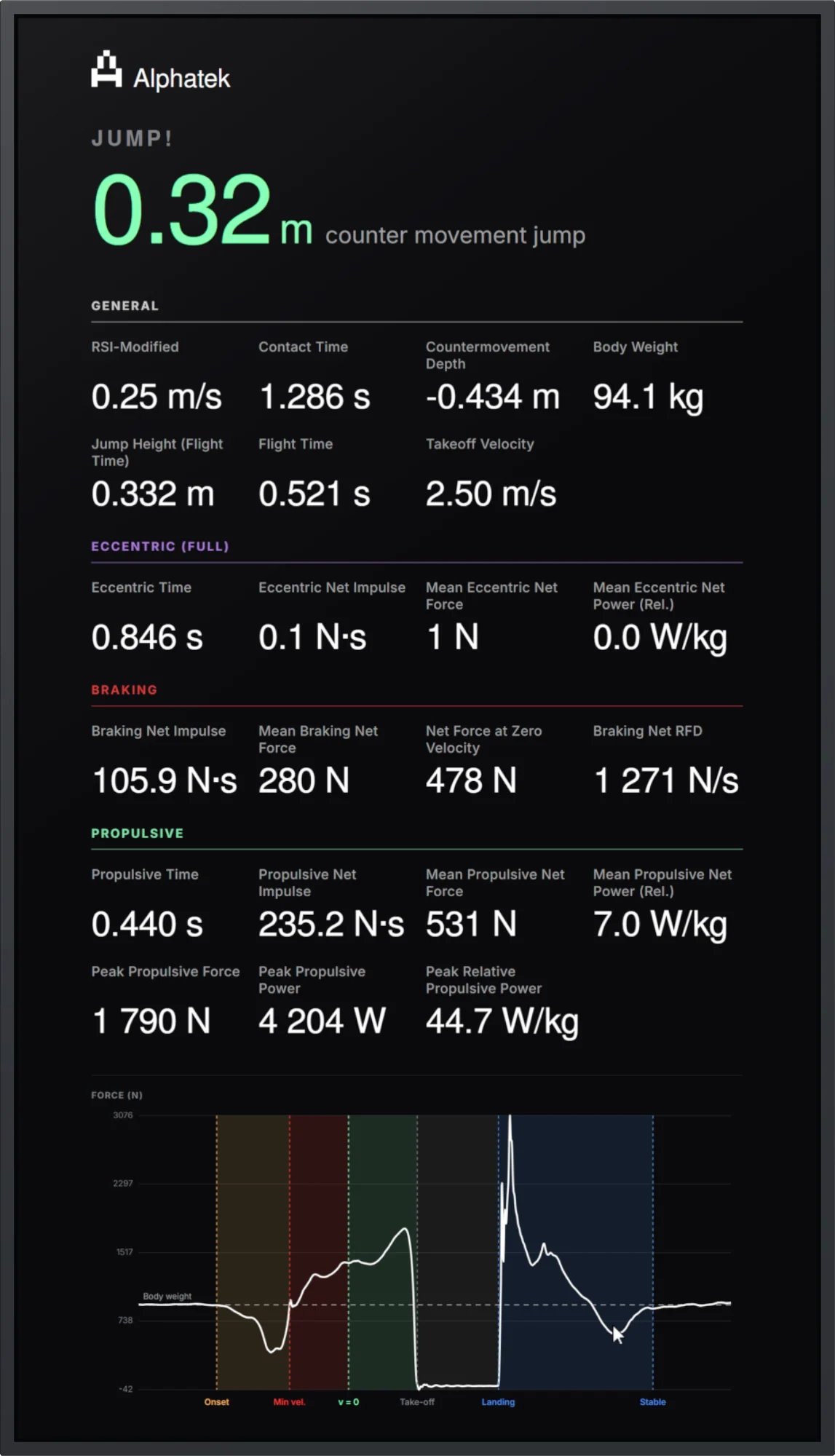

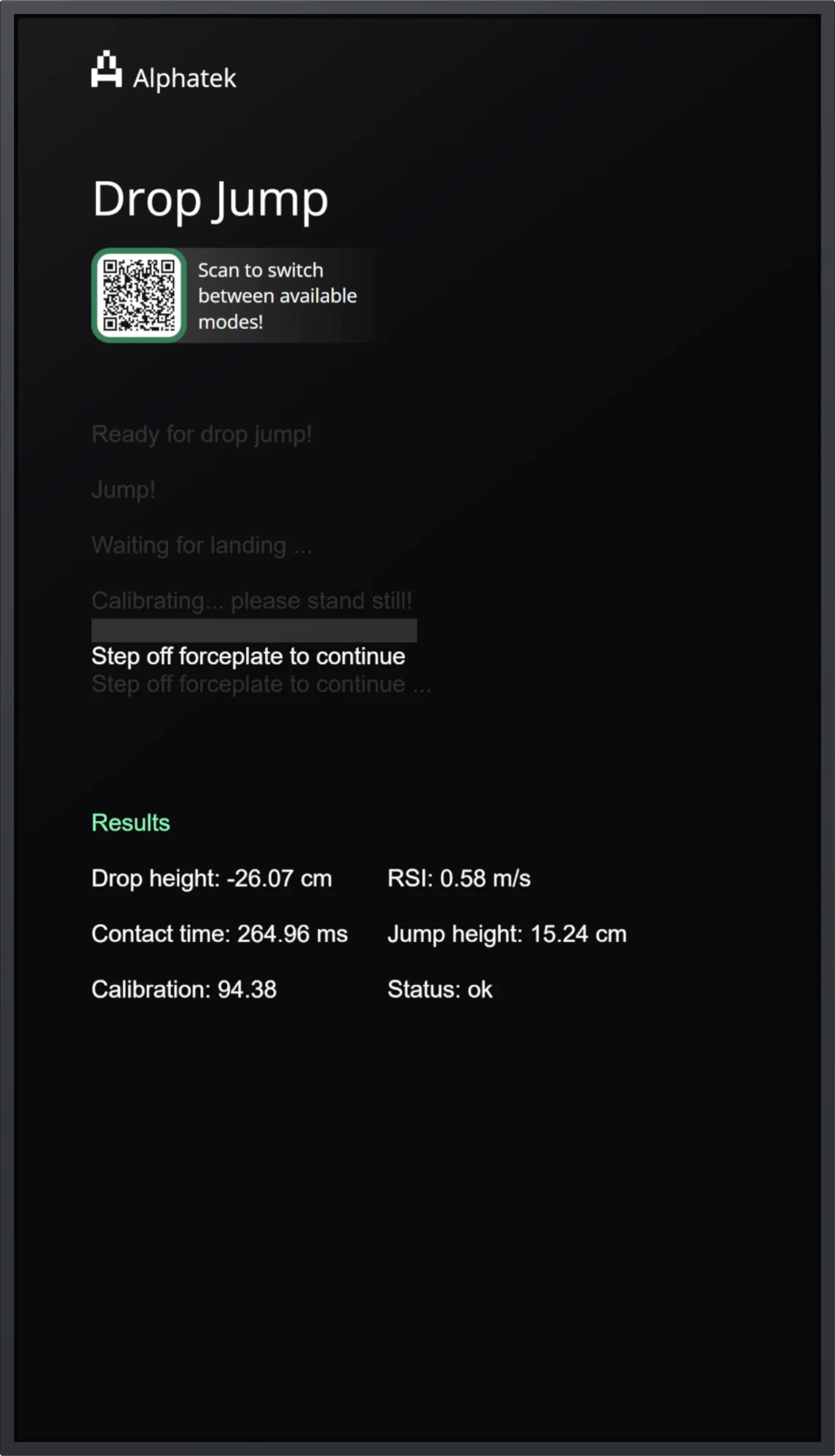

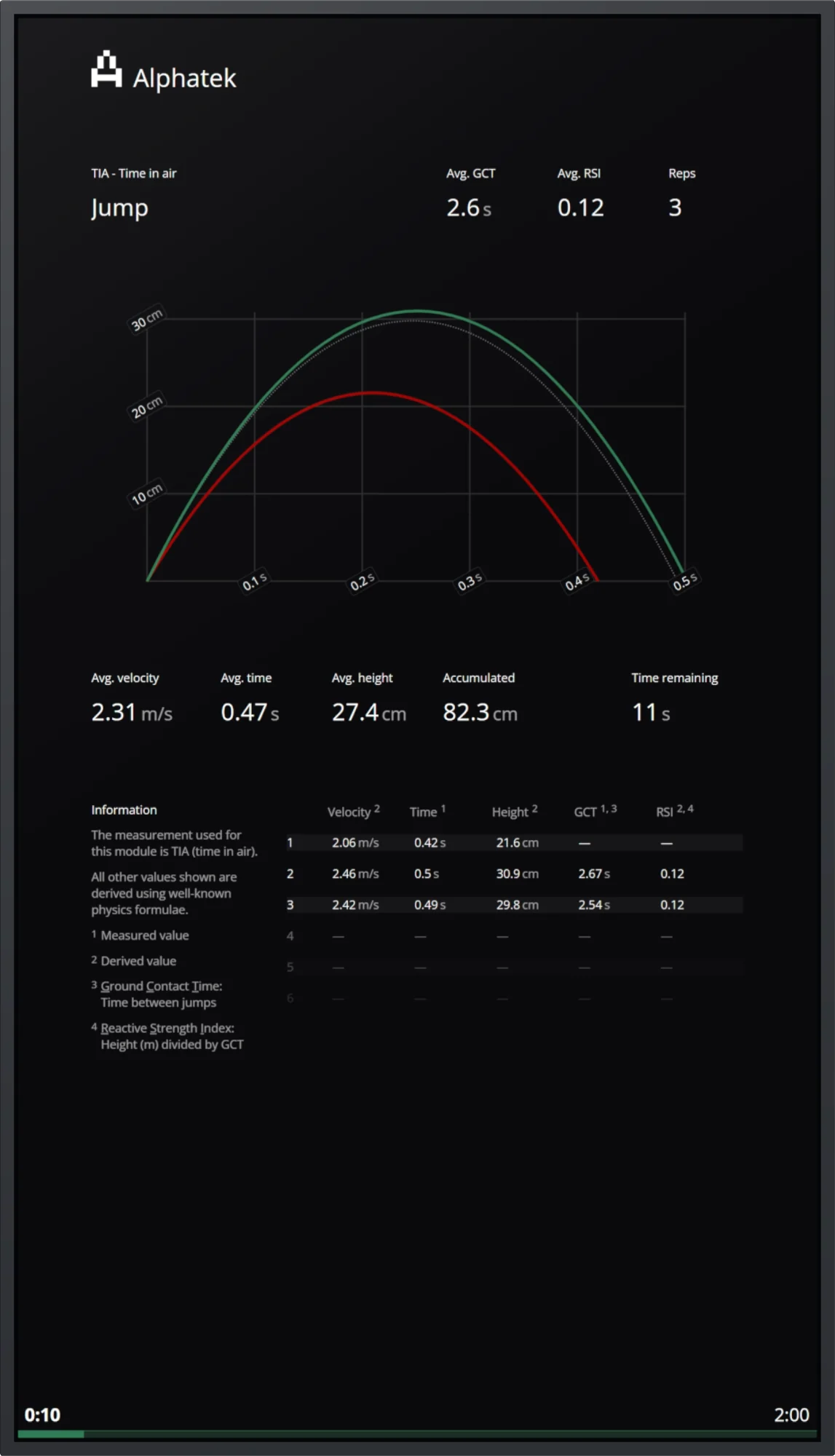

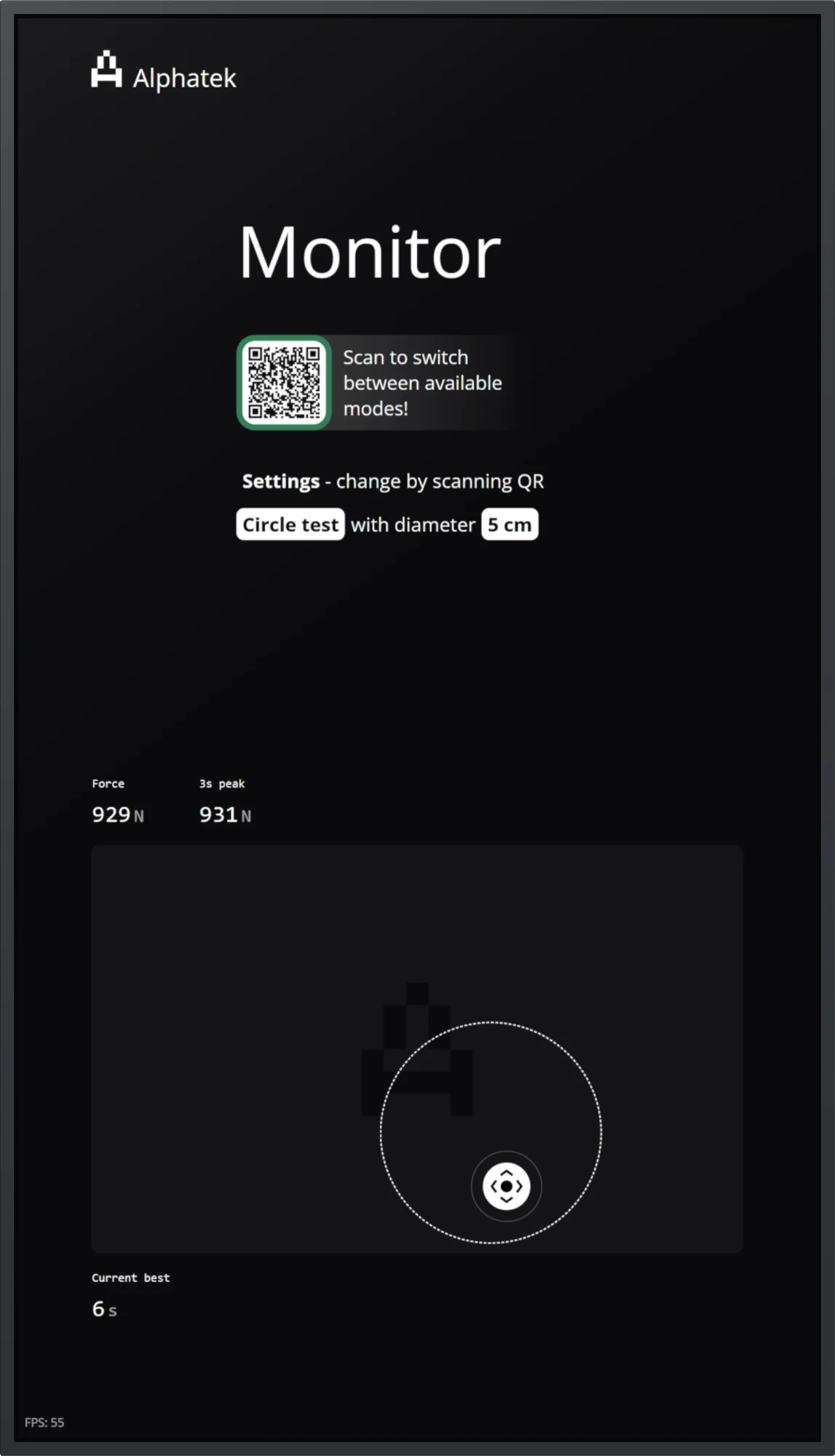

From your first jump to detailed analysis. Explore the screens that turn measurements into something you can see, understand and use.

.ax-screen-carousel .ax-screen-kind-picker, .ax-screen-carousel .ax-screen-visual, .ax-screen-carousel .ax-screen-copy > .ax-label, .ax-screen-carousel .ax-screen-picker, .ax-screen-carousel .ax-screen-hint { display: none !important; } .ax-screen-carousel .ax-screen-layout { grid-template-columns: 1fr; } .ax-screen-carousel .ax-screen-description, .ax-screen-carousel .ax-screen-session { display: flex !important; visibility: visible !important; opacity: 1 !important; transform: none !important; }

Activity

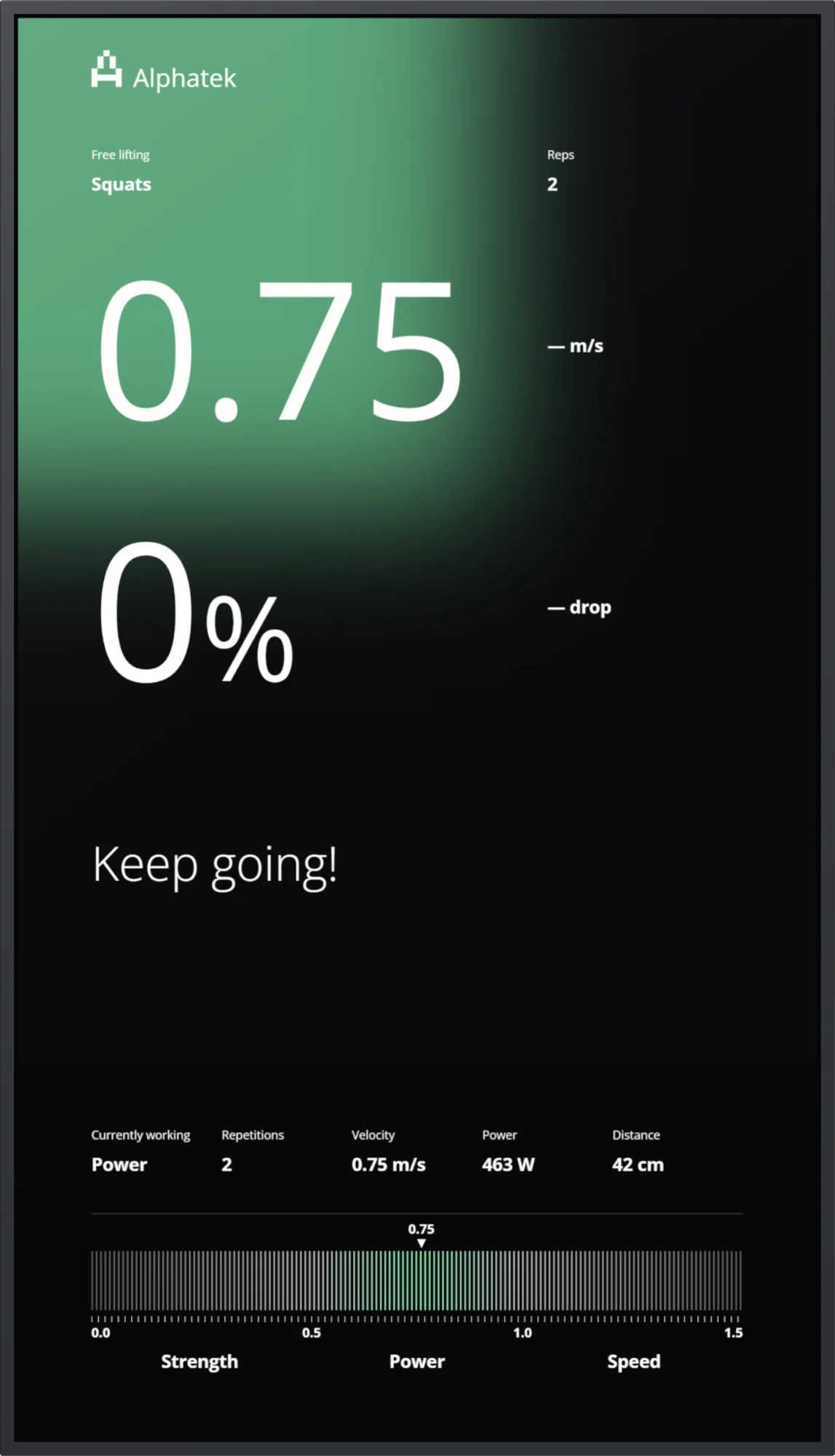

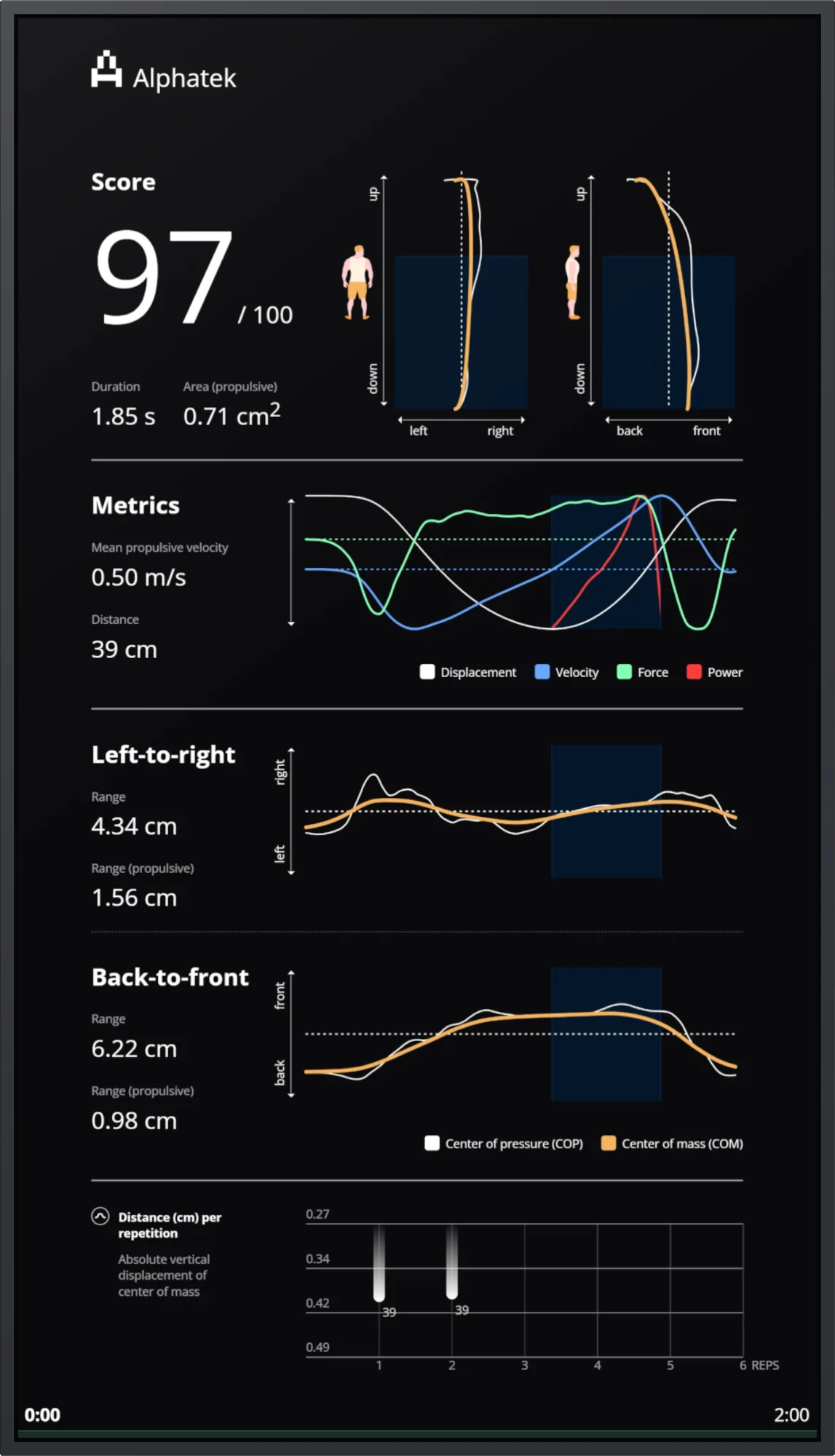

Squat

Follow each repetition with lifting velocity, velocity loss and power. A clear scale places the lift between strength, power and speed.

Go directly to

Swipe or use the arrows. Tap the screen to see the details.

The platform keeps improving after installation.

Alphatek runs on software, and we release updates continuously with new features and improvements. Some updates are included in the price, while others are optional add-ons you can buy.

Four parts that work together.

Measures

Measurement platform

Registers the physical action and keeps the starting point repeatable.

Guides

Large display

Shows instructions and live feedback where the activity happens.

Controls

Mobile interface

The professional runs the session from a phone and can stay with the person throughout.

Follows up

Results

Keeps the sessions together, so progress is easy to see over time.

Five versions of the platform.

Choose by space and use. In the demo, we go through which one fits your setting.

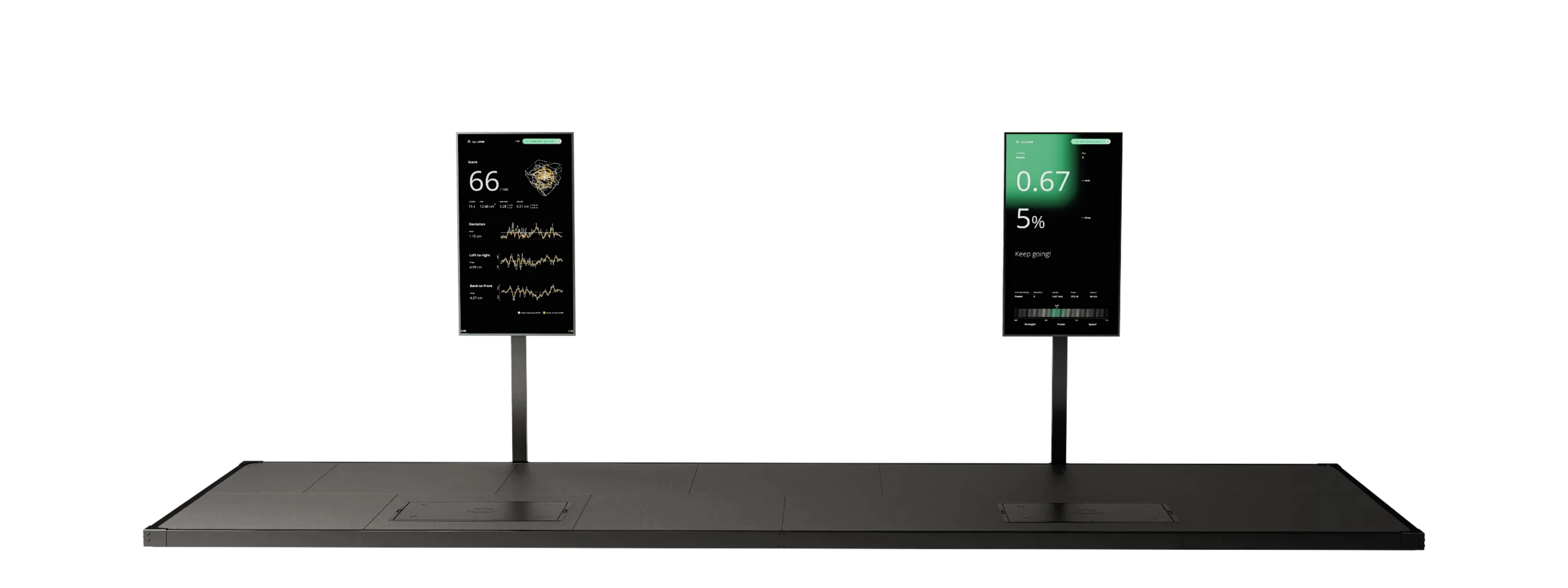

Double
Two measurement plates and two screens on one long platform.

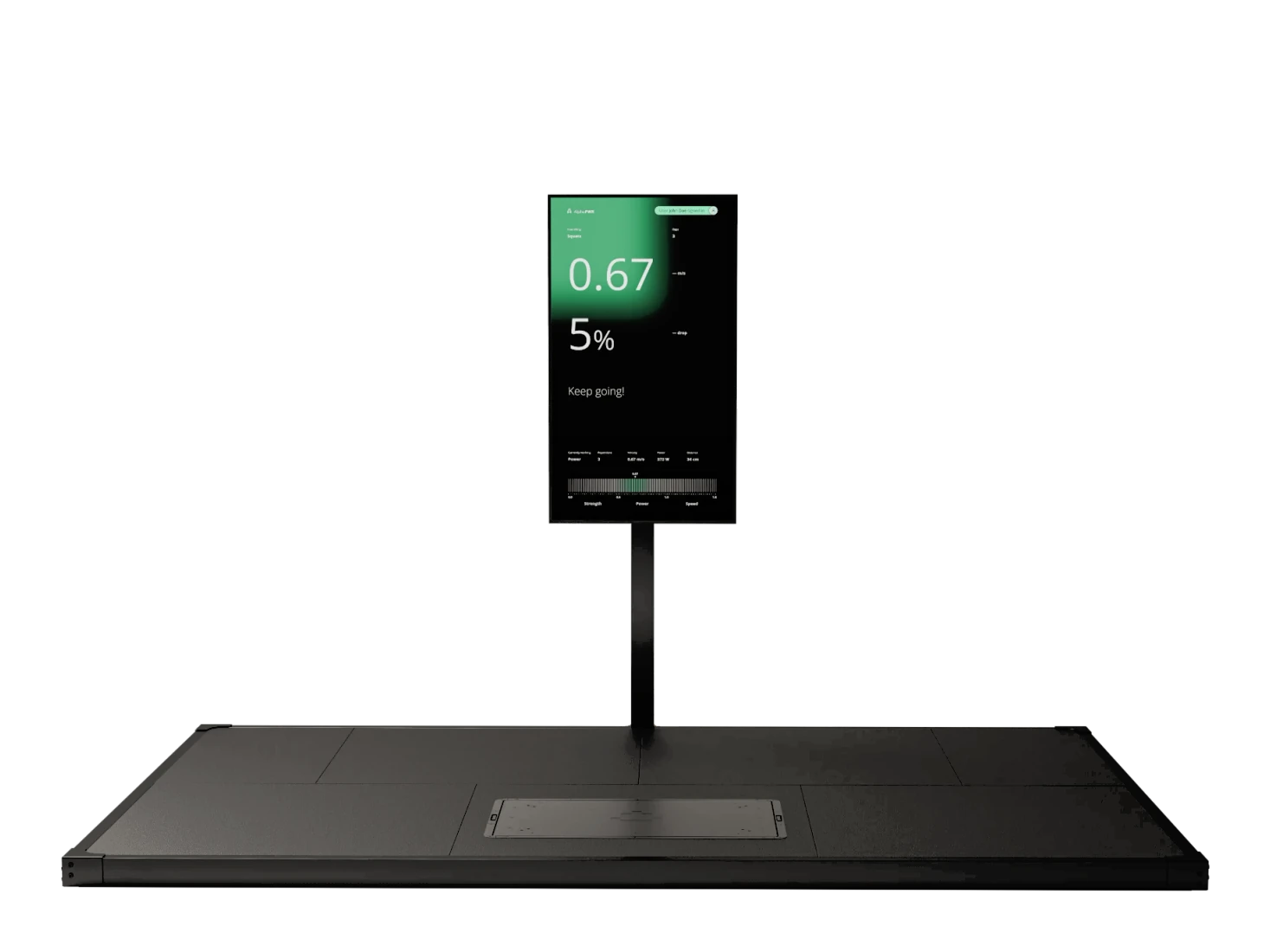

Medium
One measurement plate and a screen on a wide platform.

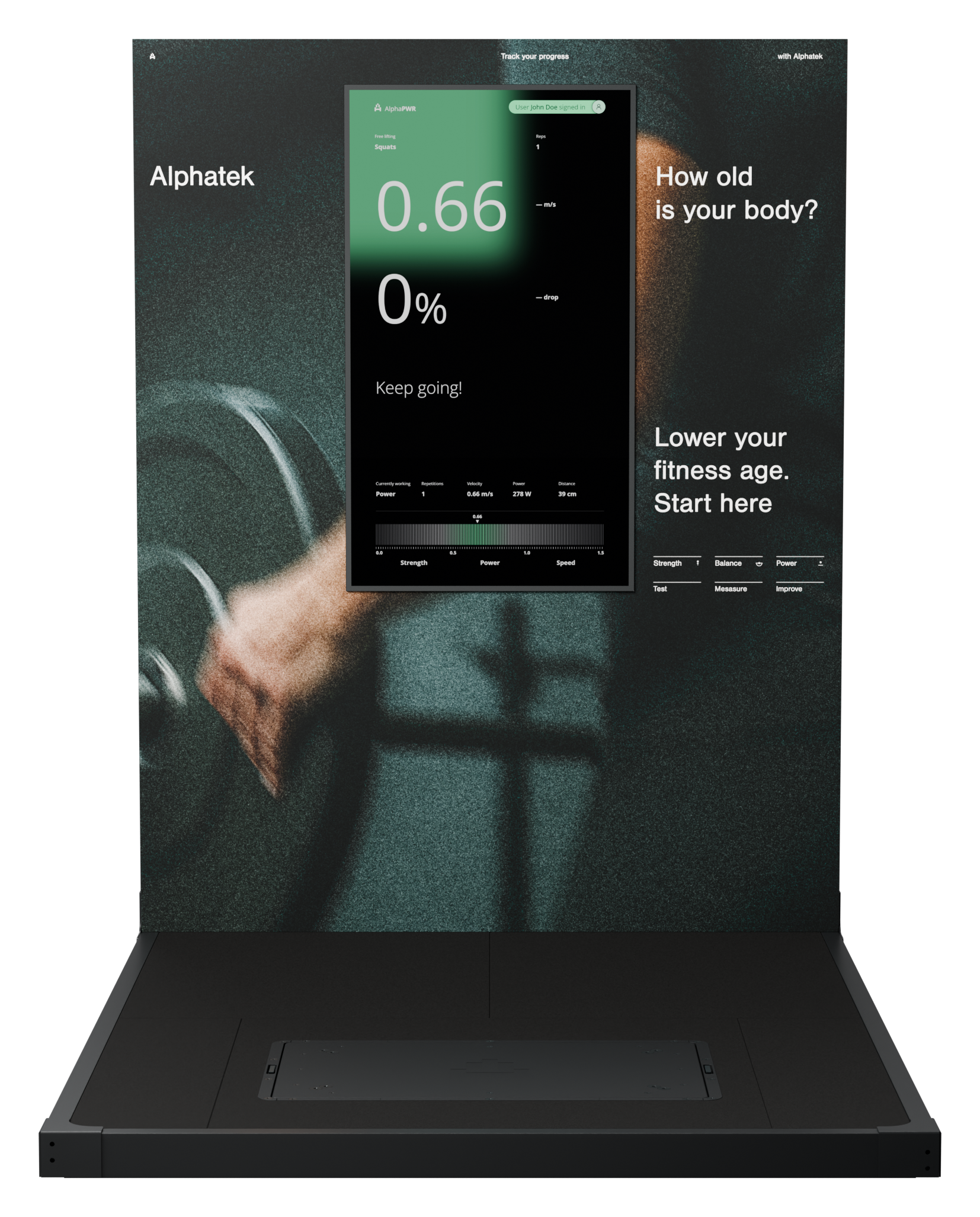

Mini + with back wall
Mini + with a printed back wall around the screen.

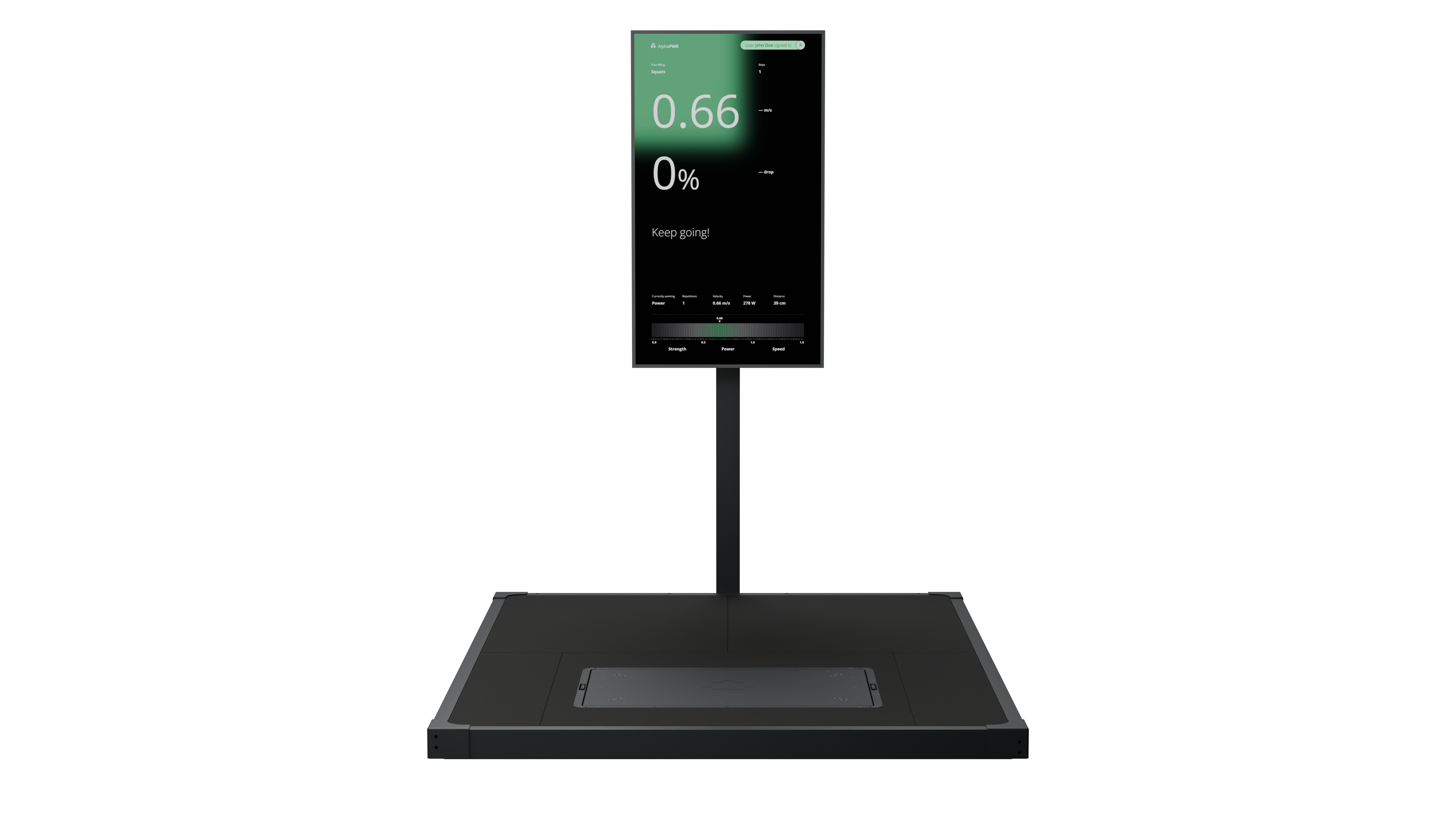

Mini +
More floor space around the measurement plate than Mini.

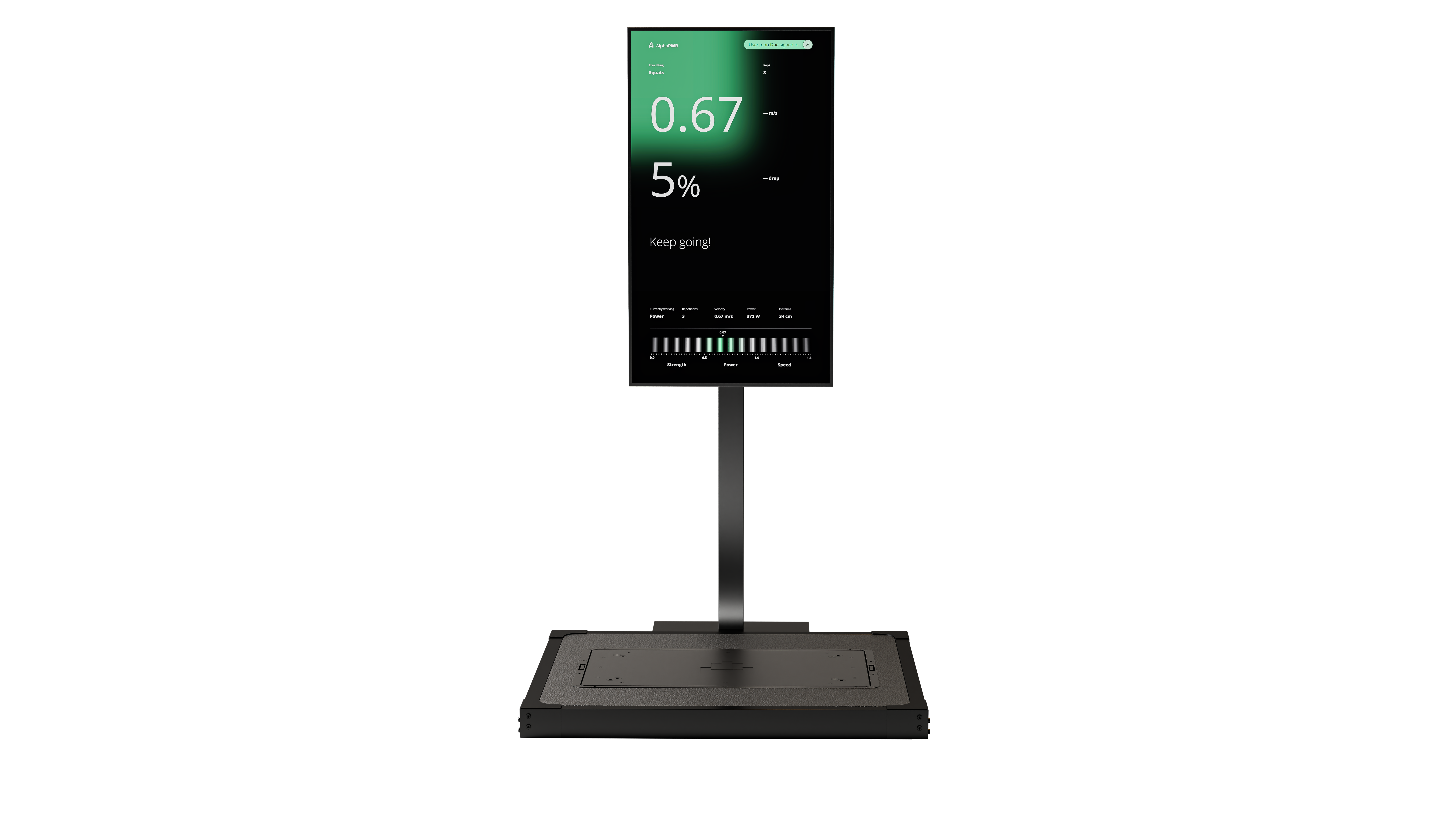

Mini
A compact platform with a screen.

Power, network and space requirements

Installation requirements

Electrical

Connection: 2 power outlets (4 for Double), 100–240 V AC, 50/60 Hz
Maximum power consumption: 300 W

Space and flooring

Surface: A level, hard floor. Rubber tiles are acceptable.
Recommended ceiling height: 275 cm
Dimensions: Select “View in 3D with dimensions” on products with a 3D view.

Internet

Connection: 2 Ethernet connections (4 for Double) using CAT5 cable. Wi-Fi is not supported.
Before installation: A network test is required to check latency, bandwidth and stability.

Operating environment

Temperature: 0–40 °C (32–104 °F)
Humidity: 10–80 %, non-condensing

Maintenance and equipment

Maintenance: Must be performed by Alphatek personnel unless otherwise agreed.
Batteries: 2 × AAA for the TV remote

The force platform

Technical specifications

Sampling rate	434 Hz
ADC resolution	32 bit
Measurement direction	Vertical force
Sensor type	4 × shear beam load cells
Measurement range per load cell	0–500 kg
Active measurement area	800 × 500 mm
Safe load	4 × 600 kg
Data access	Real-time feedback on the system and CSV file export.

Alphatek force plate with its narrow frame. Dimension lines show the plate's active measurement area of 800 × 500 millimetres.

Integrated load cells: 4
Sampling rate: 434 Hz

Why Alphatek?

Many solutions measure. Alphatek turns the measurement into a conversation and a reason to come back.

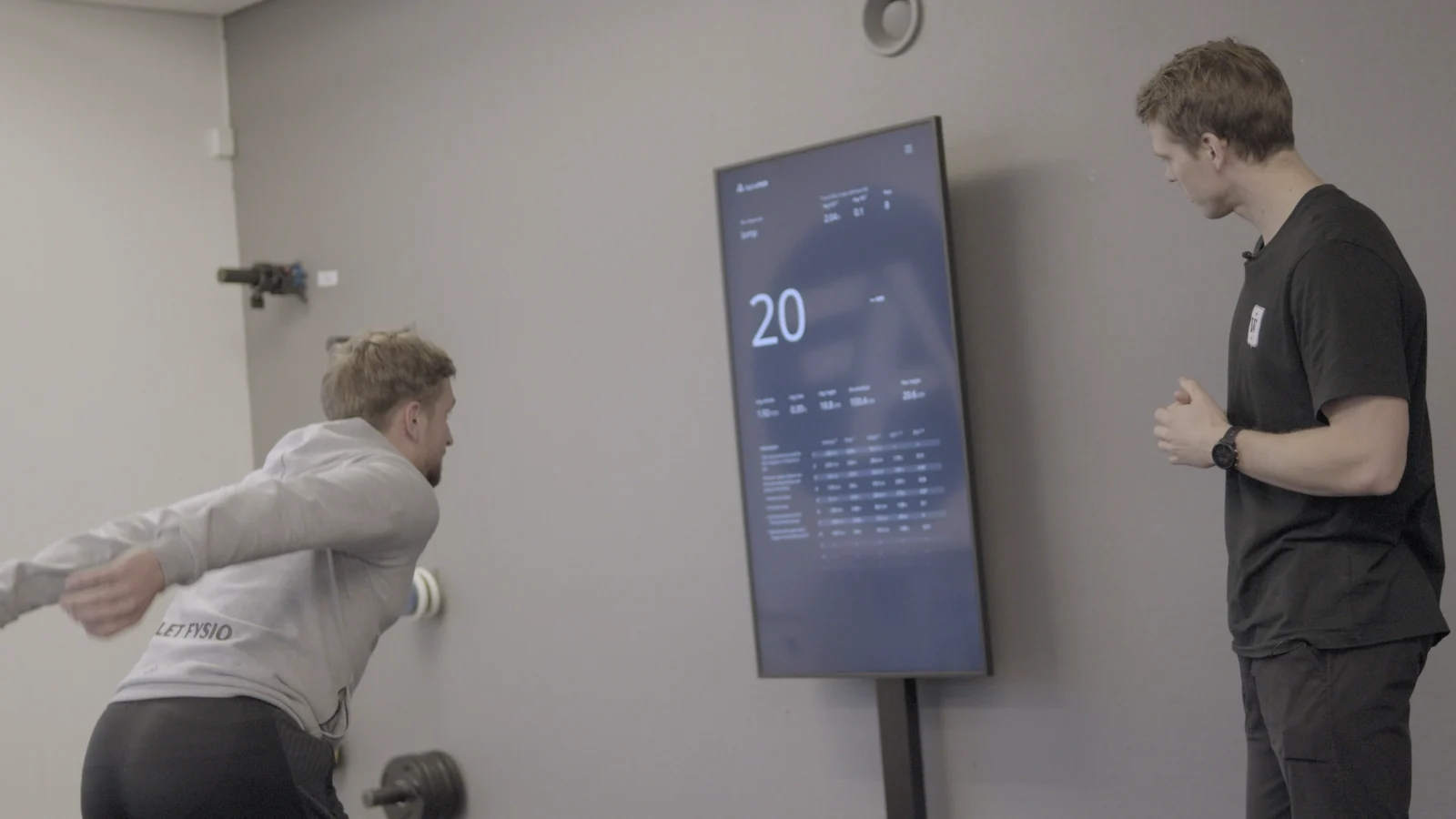

A user performs a test in front of the Alphatek display while a coach observes.

Alphatek compared with other ways of following progress
Alternative	Common challenge	With Alphatek
Force plates for elite sport and laboratories	Often built for expert use, with results interpreted on a tablet or computer.	A large screen guides the person through the exercises. The professional controls it from a phone.
Body composition analysis	Measures body composition, not what the body can do.	Measures strength, power and balance: progress people feel in everyday life.
No measurement	Progress is hard to see, especially in the first weeks.	A clear starting point, and progress you can review together at the next assessment.

What sets Alphatek apart

Ready-made sessions for your clients

Such as Fitness Age, the Senior Fitness Test, the Runner Profile and return to sport. The screen shows the person what to do, so you can start without building your own test set-ups.

Feedback that is easy to understand

Colours and clear numbers on screen while the person trains. Colour-coded feedback has been studied in a master's thesis at the University of Stavanger.

Read about the study

Used every day, not just on test day

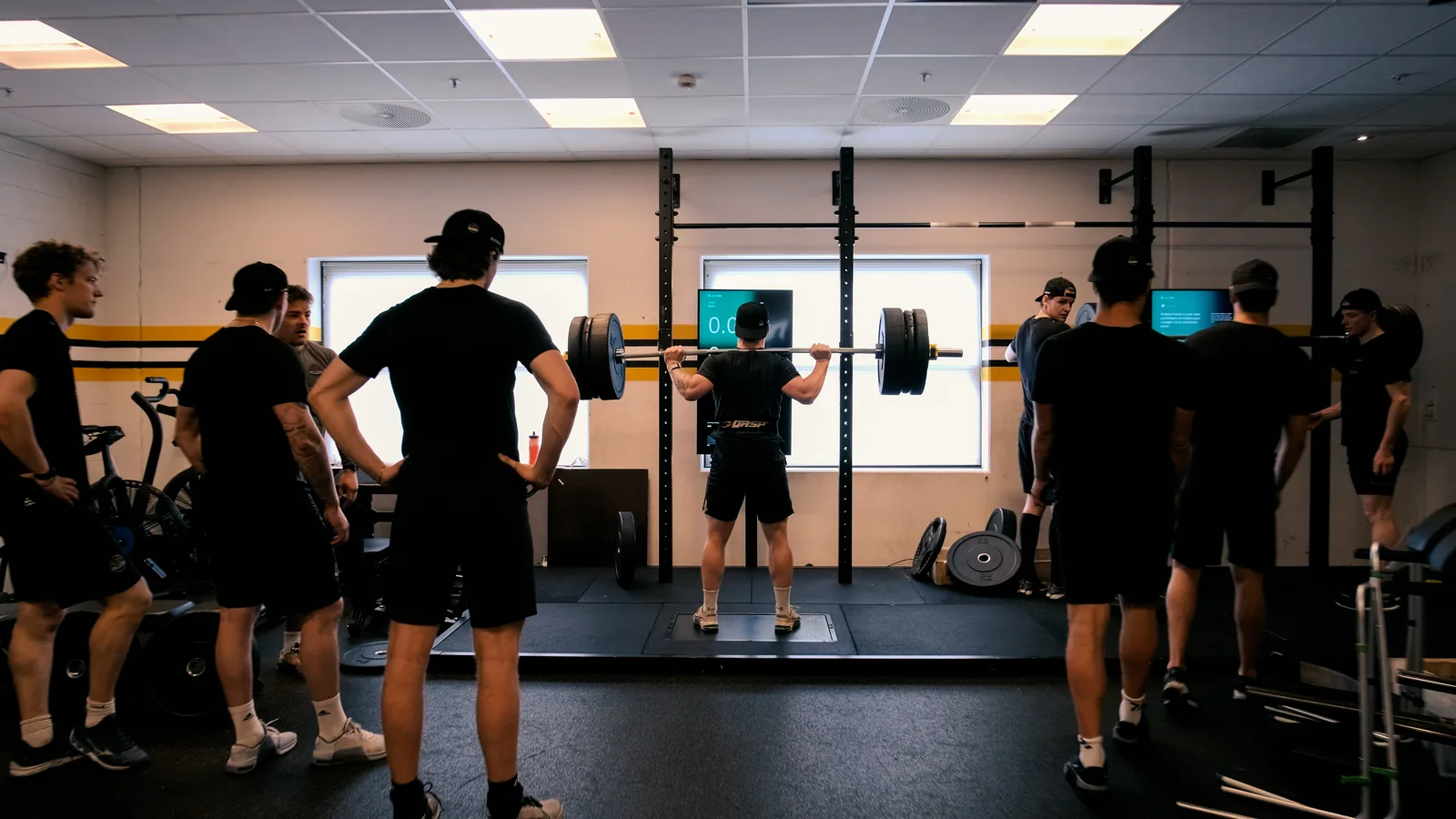

With a barbell on the platform you can also train squats with feedback during each set. The system is always ready, with no charging or Bluetooth pairing.

Compared with a laboratory force plate

AlphaPWR has been compared with an AMTI force plate during countermovement jumps. The platform is developed in Norway, and installation, training and support are part of the delivery.

Read about the comparison
